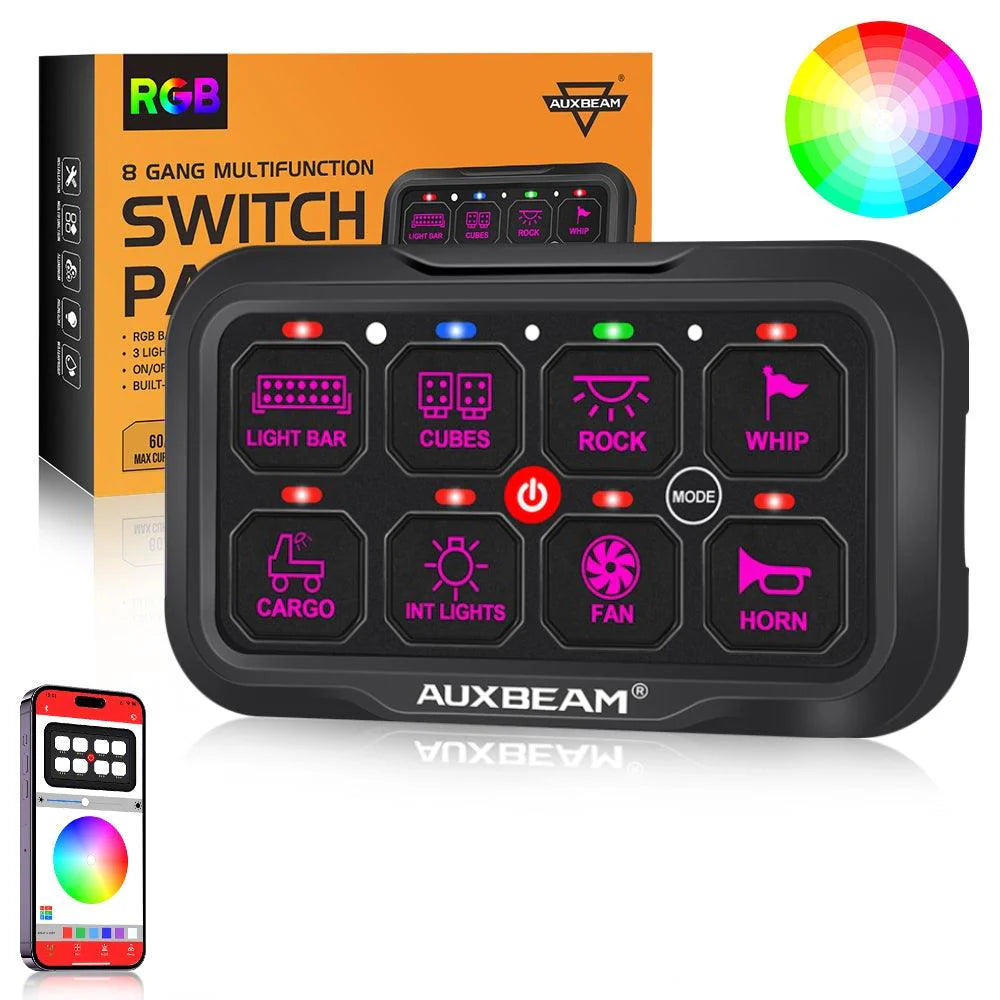

AR-800 RGB Switch Panel with APP, Toggle/ Momentary/ Pulsed Mode Supported(One-Sided Outlet)

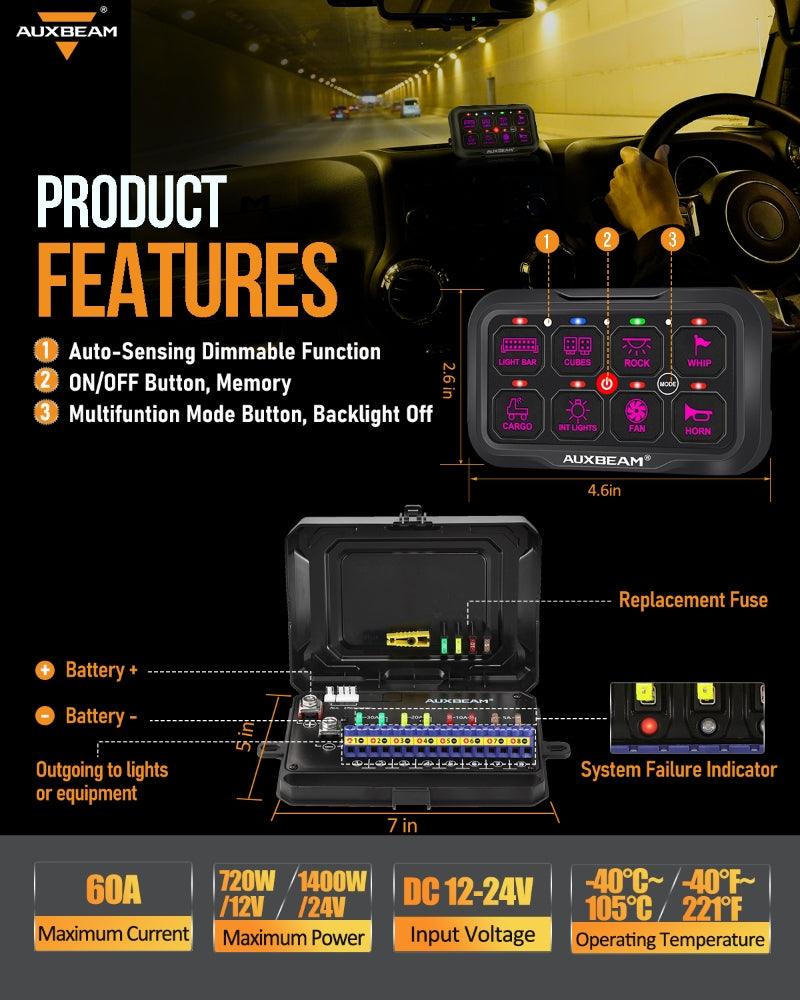

Specification:

Working Voltage: DC 12-24V
Max Current: 60A
Rated Voltage: 12V 20A / 24V 10A
Operating at 12 Volts: Max Power Rating of 720W
Operating at 24 Volts: Max Power Rating of 1400W
Switch Operation: On-Off
Operating Temperature: -40°C - +105°C
Waterproof Rating: IP65

Package Included:

• 1 Set of 8 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)
• Installation Instructions
